OEM Xenon Flash Lamp Tube Manufacturer from China since 2012

  • xenon flash tube.traffic flash light,flash tube
  • Input Voltage(V):AC 110V ( ± 10%)
  • Brand Name:OEM
Product Description

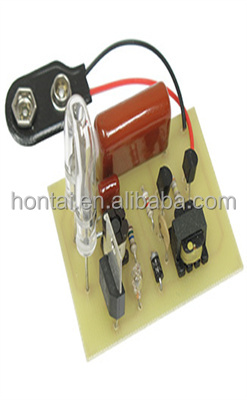

High Light Transmission Quartz Glass Flash Tubes Direct-Selling For PCB Design

xenon flash tube.traffic flash light,flash tube

Flashtube Construction .xenon flash tube.traffic flash light,flash tube

U-shaped xenon flashtube The lamp comprises a hermetically sealed glass tube, which is filled with a noble gas, usually xenon, and electrodes to carry electrical current to the gas. Additionally, a high voltage power source is necessary to energize the gas as a trigger event. A charged capacitor is usually used to supply energy for the flash, so as to allow very speedy delivery of very high electrical current when the lamp is triggered.

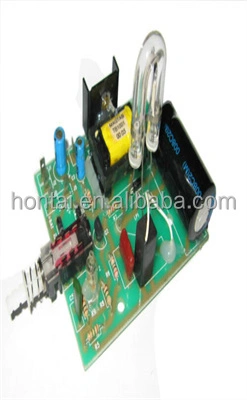

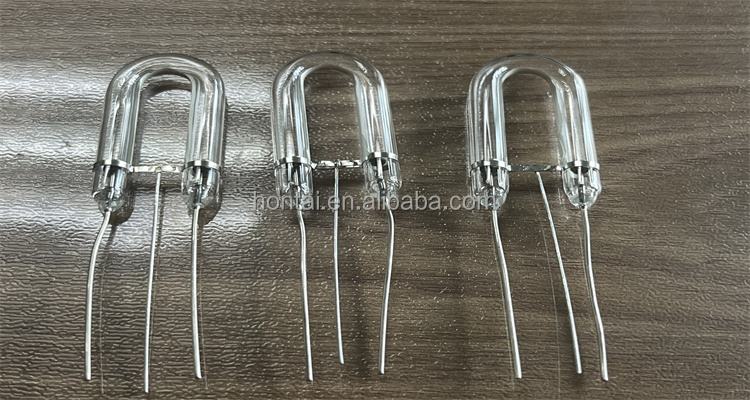

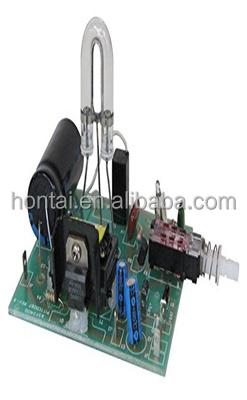

U-Shape (Horse Shoe) Flash tube Lamps - for Photography, signaling, warning lights. Curving the Flash tube envelope allows keeping a long Arc Length, having a larger envelope area, while benefiting of a short pin-to-pin distance. It allows a more efficient PCB design, a smaller device enclosure.

Application of Xenon Flash Tube

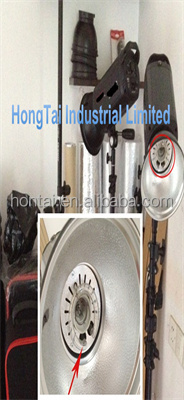

Photographic : Both amateur and professional equipment. Traffic : Warning beacons for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads. Industry : Stroboscopic applications such as automotive timing lights, dynamic balancing machines, high speed photo copiers and typesetting. Publicity: Strobes for window displays, psychedelic lighting. Science: Stroboscopic applications, laser pumping, colorimetry . Medical: Endoscopic applications.
Flash Rate at normal Energy
1 Sec
Normal Flash Energy
15w
Design Anode Voltage
400V
Max.Anode Voltage
500V
Min.Anode Voltage
250KV

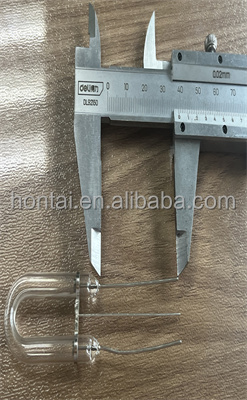

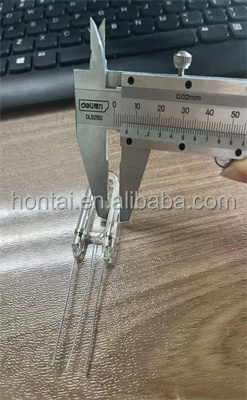

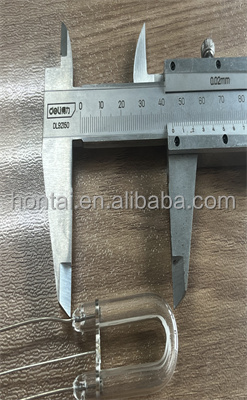

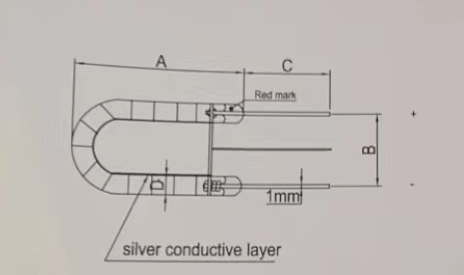

Dimensions A*B*C*D (mm)
(45±1)*(16±1)*（38±1）* （ϕ6.0±0.2）
Life
5.0*106Flashes

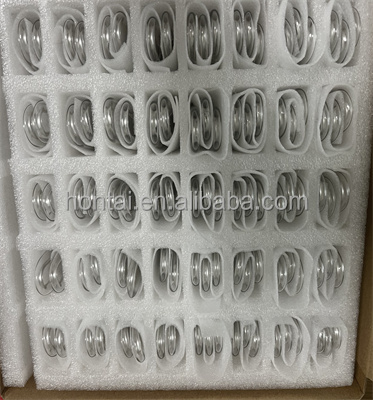

Product packaging
