OEM Xenon Flash Lamp Tube Manufacturer from China since 2012

  • xenon flash tube for timing light & xenon tube light
  • Lighting solutions service:Lighting and circuitry design
  • Brand Name:OEM
  • Specification:Quartz Glass
  • Product name::xenon flash tube for timing light & xenon tube light
  • Gas Filling:99.999% Xenon Gas
  • Main application::xenon flash tube for timing light & xenon tube light

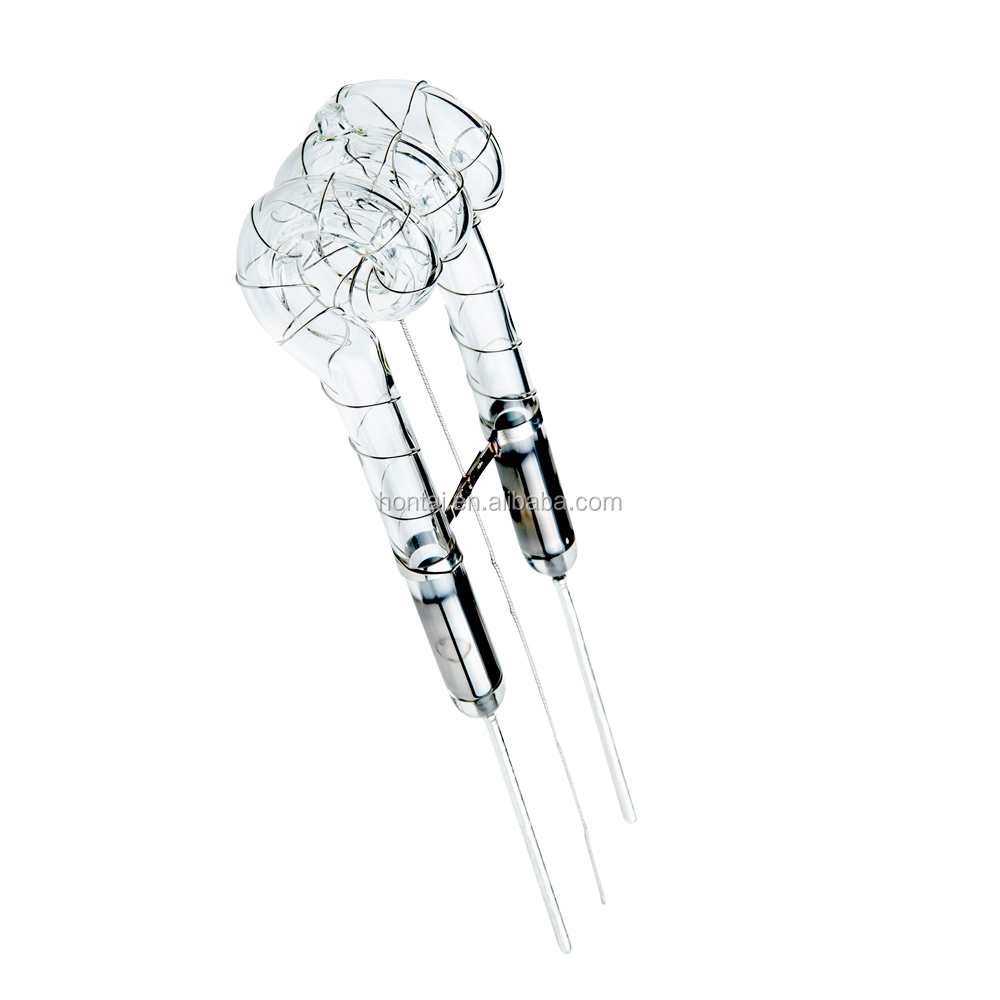

  • Shape:::Spiral
  • Operating type::Pulse
  • Connector type::Wire
  • xenon flash tube for timing light & xenon tube light
Product Description
Specification
xenon flash tube for timing light & xenon tube light
Type
Material
Size(mm)
Anode Voltage (V)
Min. Trigger Voltage
Flash Energy
Life Span（shot)
QFM0842
Quartz Tube

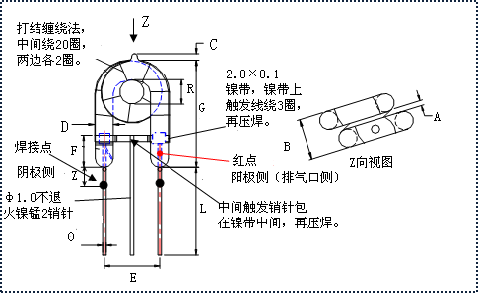

8(D)*20(E)*42(G)*45(L)
400 (min.)
550 (standard)
620(max.)
8KV
70W
9 million
QFM0740
Quartz Tube
7.0(D)*18.5(E)*40(G)*45(L)
450(min.)
550(standard)
650(max.)
8KV
60W
9 million
QFM0845
Quartz Tube
8(D)*22(E)*42(G)*45(L)
400 (min.)
520 (standard)
620(max.)
8KV
70W
9 million
QFM0742
Quartz Tube
7(D)*20(E)*42(G)*45(L)
450(min.)
550(standard)
650(max.)
8KV
60W
9 million
Customize
Quartz/Glass Tube
(6~10)*(18~22)*(35~45)*customize
Customize
Customize
Customize
Custom-ize
Our Advantages

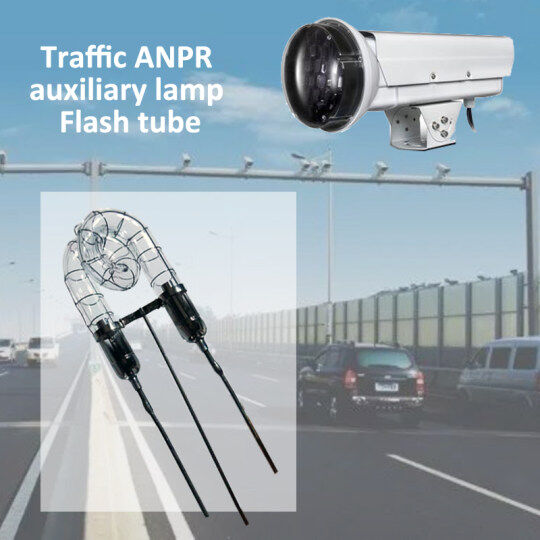

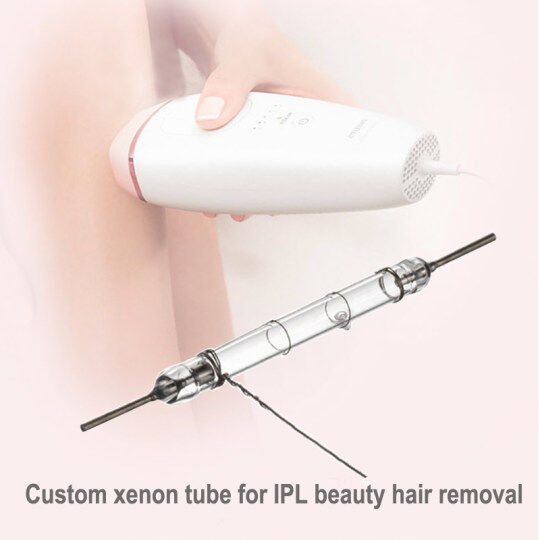

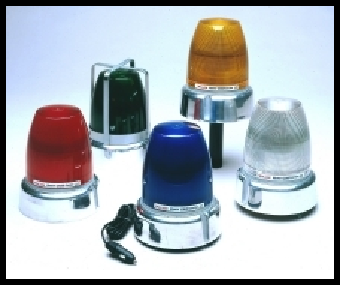

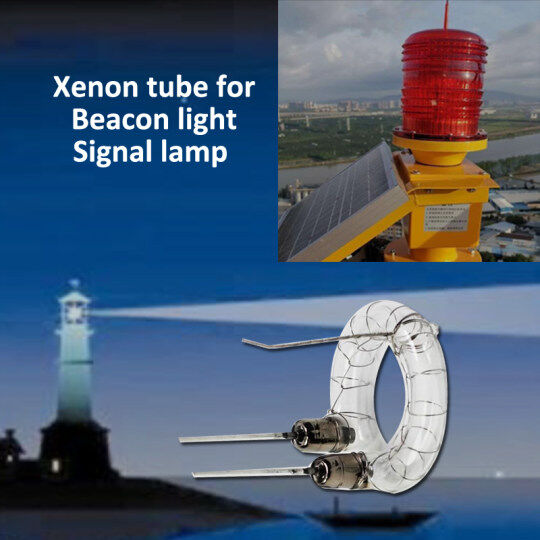

xenon flash tube for timing light & xenon tube light can be widely use in below areas: photography use: flash lamp, cold light equipment etc Traffic use: Air plane, shipping,lighthouse,E-police(traffic camera) signal lamp or indicator lamp Industrial use: stroboscopic speed measuring instrument calibration, positioning, vehicle fire equipment and so on Civilian use: Clinical system, advertising device,stage lighting, toys lighting,plate-making equipment etc Science use: analytical instrument, measuring instrument and so on Medicine use: diagnostic instruments, laboratory instruments, beauty equipment etc.

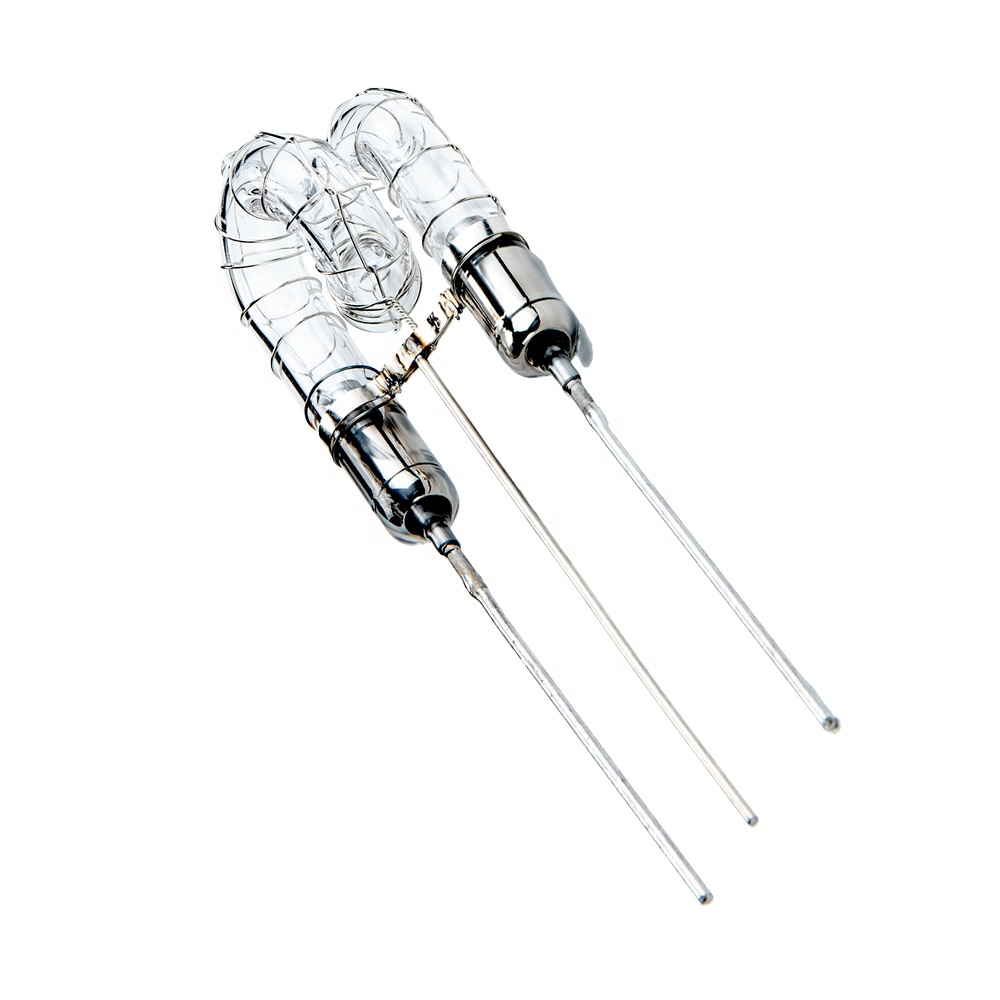

Details Images
Product characteristics

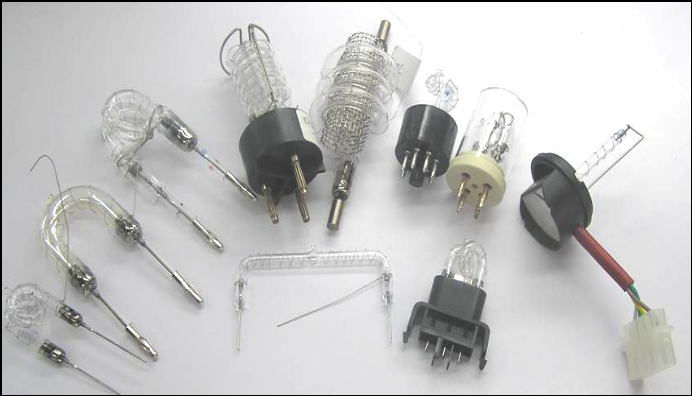

xenon flash tube for timing light & xenon tube light design form is made of hard glass and quartz glass forms, for different shapes and sizes The high stable light output The high efficiency The fluorescent coating The custom with the trigger electrode, end caps, glass cap, flexible or rigid wire flash. xenon flash tube for timing light & xenon tube light
Related parts: 1, O ring for 7mm lamp 2, Positive red wire 3, Negative black wire xenon flash tube for timing light & xenon tube light are available with rather different fill pressures from well below 1 atm to several tens of atmospheres. In any case, the emitted optical spectrum is rather broad and contains a continuum with superimposed spectral lines. The applied rather high peak currents and current densities increase the emission of light within the visible region, rather than in the near infrared. What is inside a xenon bulb? The xenon lamp contains two electrodes enclosed in a glass bulb filled with xenon gas. High voltage is applied to the electrodes, which momentarily releases sparks to create light flash. The xenon arc has the advantage of being spectral closer to daylight than the incandescent source. How long do flash tubes last? A properly designed and manufactured flash tube can last for millions of cycles, much longer than you will keep the camera, as shutters are rated to last only 100,000 - 300,000 cycles. Degradation of the flash tube - through ablation and sputter - is usually slow and minor. xenon flash tube for timing light & xenon tube light
Packing & Delivery

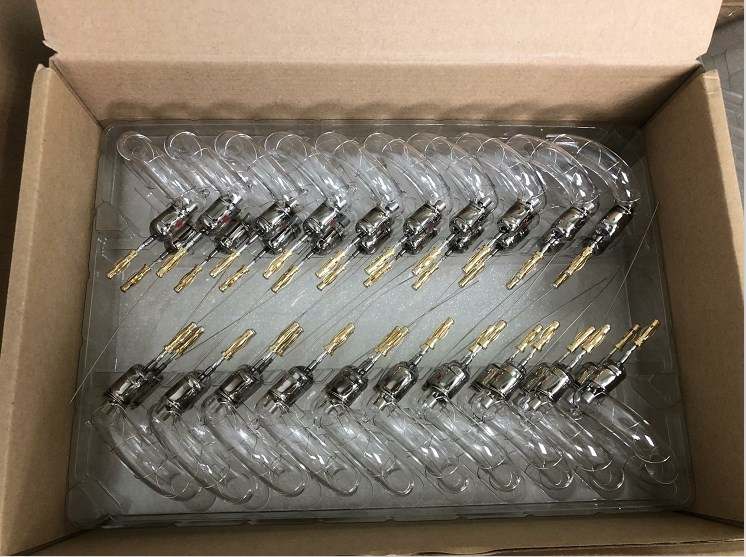

xenon flash tube for timing light & xenon tube light Packaging Details: blister tray+export carton
Customize package also accepted.
