Model No: QFR1345
Customize diameter 45mm 500W 1000W Quartz Xenon Flash Bulb Tube Camera Studio Photography Flash Light
Elevate your photography game with this customizable 45mm 500W/1000W flash bulb tube!
minimum order :
1 piece
Quantity :
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Model Number:QFR1345
- Private Mold:NO
- Product Name:500W 1000W Quartz Xenon Camera Flashtube
- Compatible With:Profoto D1 / Elinchrom
- Keywords:Xenon Camera Flashtube
- Nom flash energy,Enom (Ws):1000
- Max anode voltage,Ua max (V):580
- Nom anode voltage,Ua nom (V):450
- Min anode voltage,Ua min (V):350
- Min trigger voltage Uz min/V:270
- Light reduction after life / %:20
- Life / Number of flashes /N:100000N / T.B.D
Product Description
Xenon camera flashlight bulb 1000W
xenonlamp1000w
Xenon Flash Tube For Camera
The flash energy is usually controlled by the capacitor voltage, these lamps have a wide operation voltage range to enable a wide flash energy possibilities.
High Quality of Flashtube From China Factory
Ring Flash Lamp, for Studio lighting systems, Camera RingFlash, industrial camera setups. Allows a large diameter 130mm lens to be centered in the lamp for shadow-less imaging.

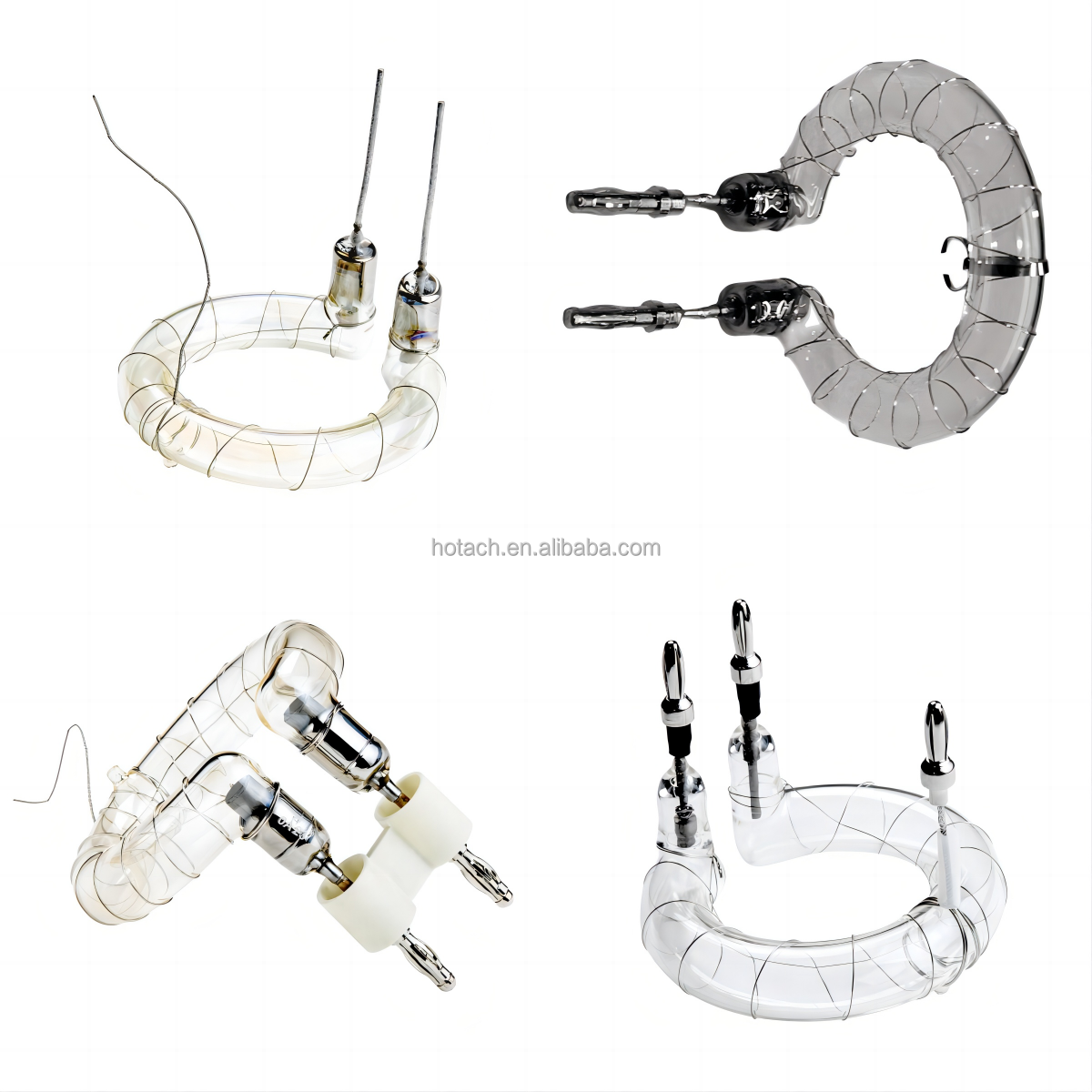

High quality Round (circular) Flash tubes for photographic and studio applications.
Suited for new product design, custom projects, and as a replacement lamp for Studio strobe flash-heads, monobloc lights, flash generator heads, etc.
Suited for new product design, custom projects, and as a replacement lamp for Studio strobe flash-heads, monobloc lights, flash generator heads, etc.
Product Presentation
Photographic : Both amateur and professional equipment.
Traffic : Warning beacons for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads.
Industry : Stroboscopic applications such as automotive timing lights, dynamic balancing machines, high speed photo copiers and typesetting.
Publicity: Strobes for window displays, psychedelic lighting.
Traffic : Warning beacons for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads.
Industry : Stroboscopic applications such as automotive timing lights, dynamic balancing machines, high speed photo copiers and typesetting.
Publicity: Strobes for window displays, psychedelic lighting.

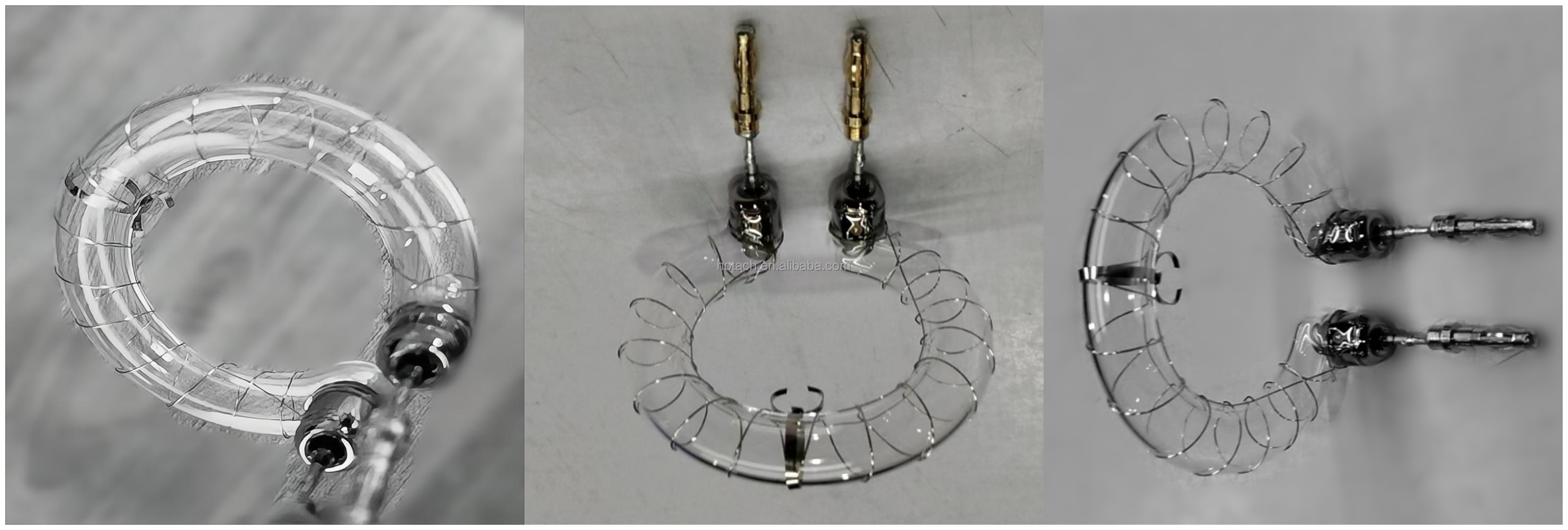

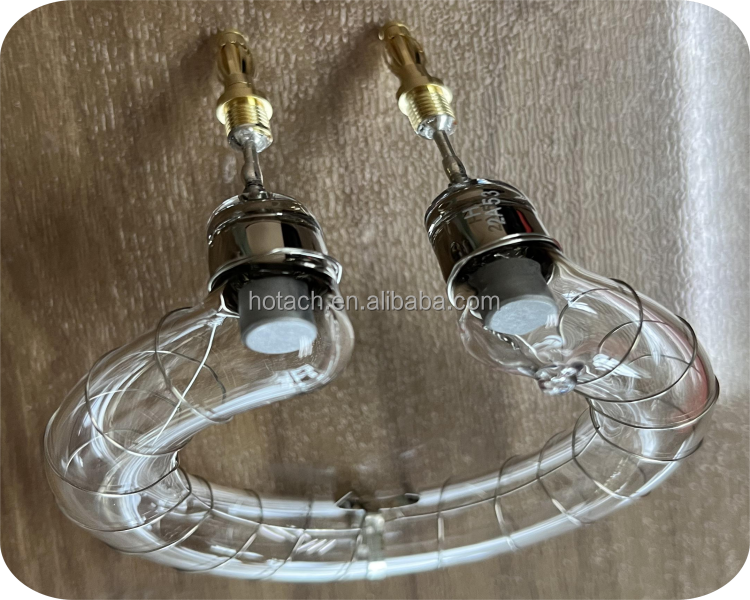

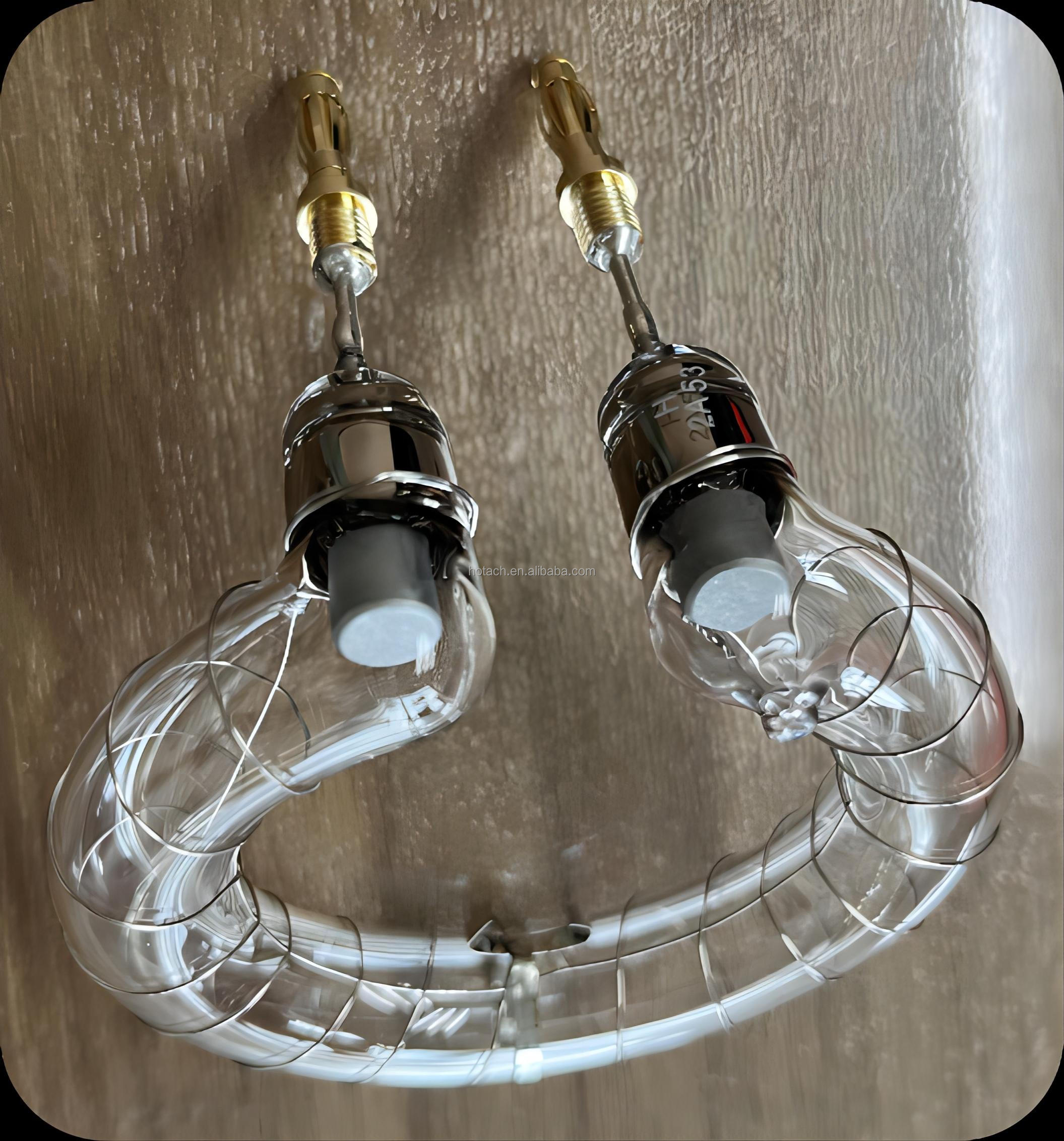

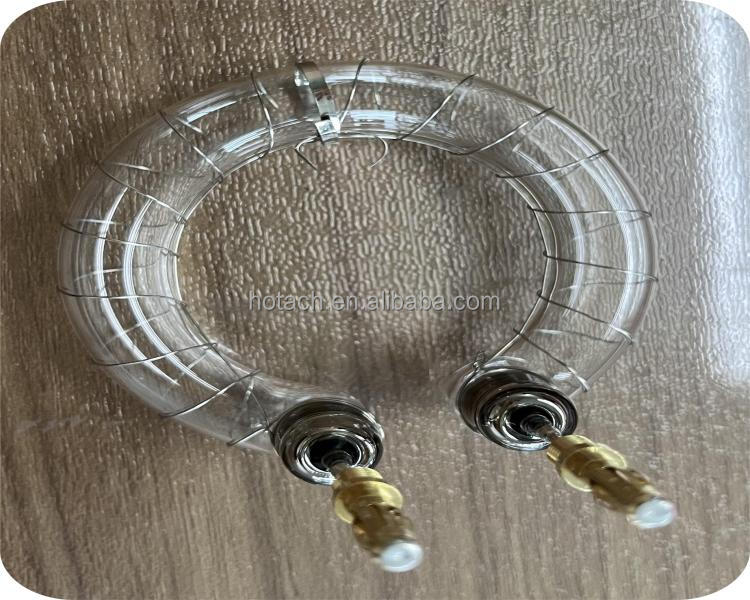

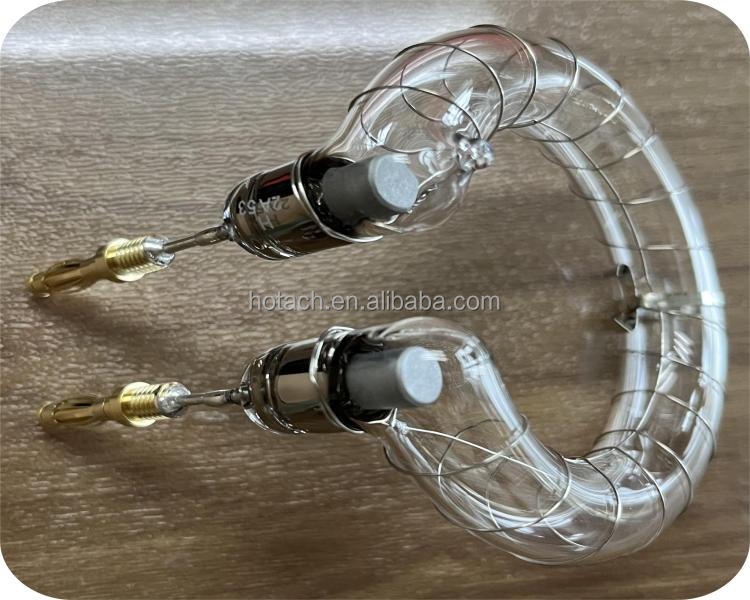

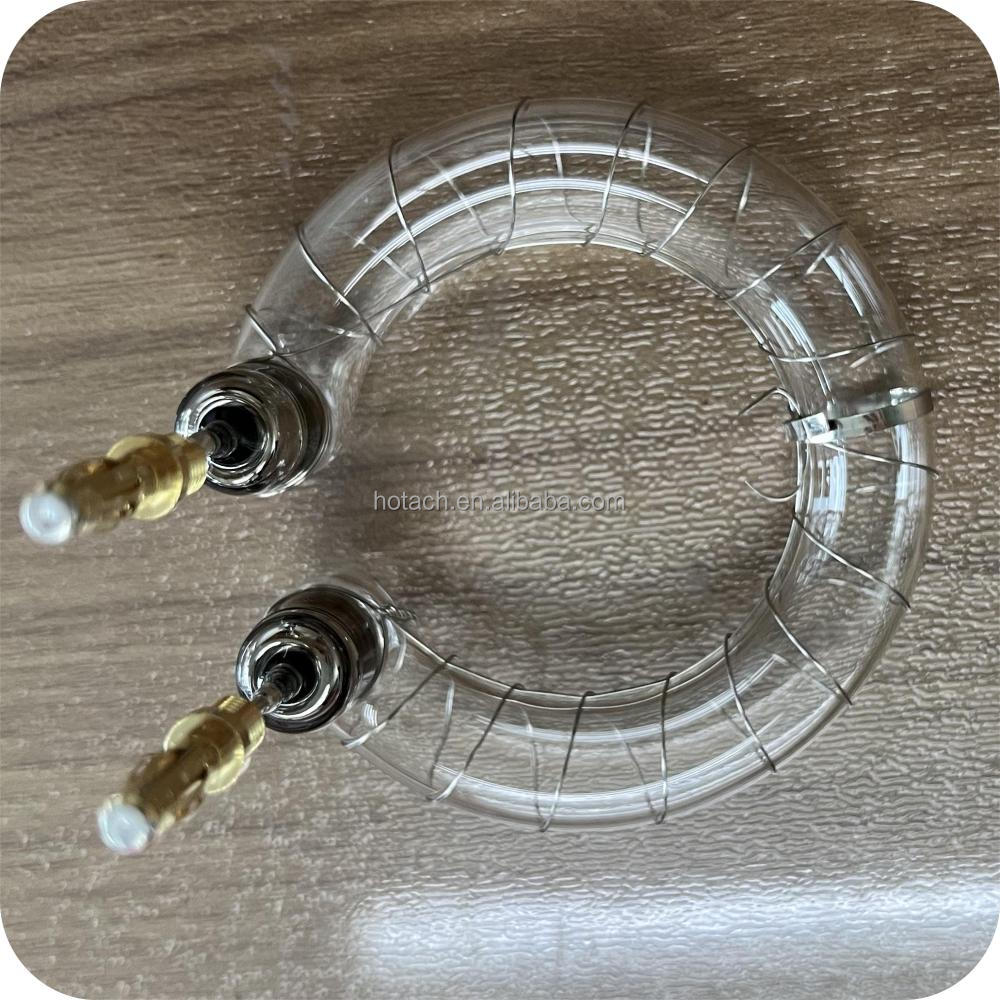

Detailed Images
Product detail of Camera Flashlight Bulb 1000W 1200W 2000W

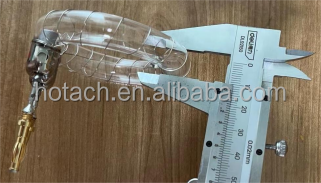

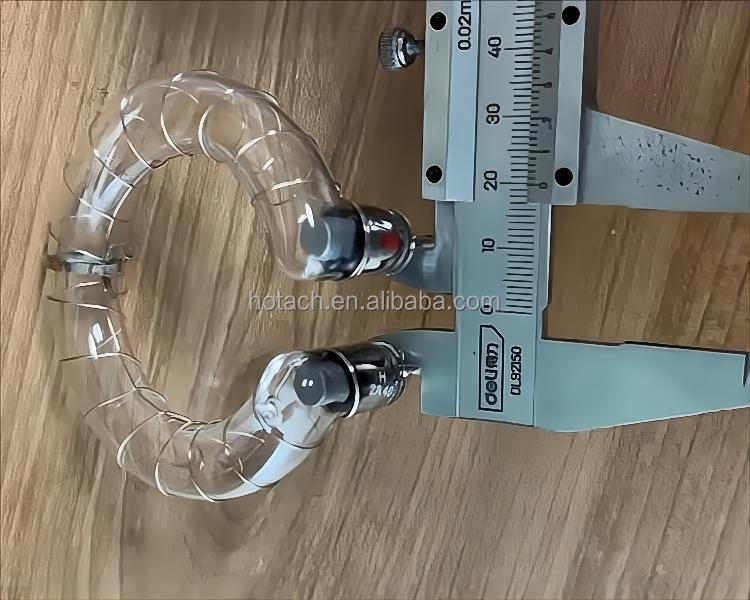

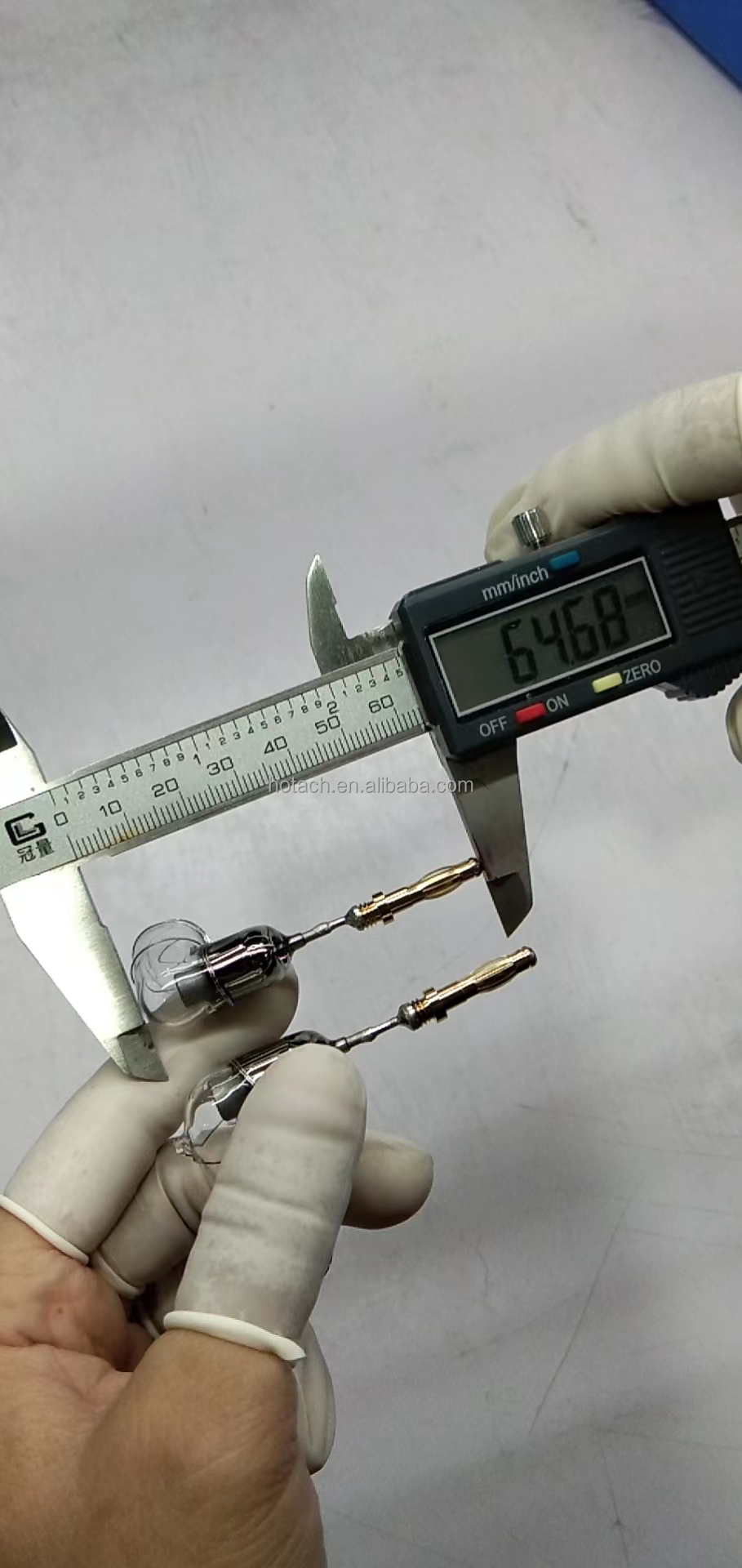

Inner Size of the camera flashlight bulb 1000W :45mm
Distance between two pins of camera flashlight bulb 1000W :21mm
Quarts Glass Tube size of the camera flashlight bulb:14mm
Introduction of product advantages of Xenon flashlamp for Photographic
Product Name | Xenon Flash Tube For Camera |
Material | Quartz Glass Xenon Flash |
Power | 500W 1000W 1200W |
Max anode voltage,Ua max (V) | *580 |
Nom anode voltage,Ua nom (V) | *450 |
Min anode voltage,Ua min (V) | *350 |
Light reduction after life / % | 20 |
Min trigger voltage Uz min/V | 270 |
Life / Number of flashes /N | 100000N / T.B.D |
Remarks:
1.Lead free solder
2.Envelope material: Quartz Glass (Q3)
3.Trigger wire: Pure Nickel
4.* booster voltage = 580V
+/-25V ,Cb=1.1uF
5.Warning:Please be careful in flashing,Tube might explode if they were flashed more than regular times
Product characteristics
The flash design form is made of hard glass and quartz glass forms, for different shapes and sizes
The high stable light output
The high efficiency
The fluorescent coating
The custom with the trigger electrode, end caps, glass cap, flexible or rigid wire flash.
Small, easy to install, concentrated exposure.
The high stable light output
The high efficiency
The fluorescent coating
The custom with the trigger electrode, end caps, glass cap, flexible or rigid wire flash.
Small, easy to install, concentrated exposure.
Operation Instruction
1.Do not handle the flash tube with bare hands,Always wear protective gloves befor contacting the glass body.Should there be dust over the glass tube,Wipe it with a soft,dry cloth.
2.Owing to the fact that both nickel ends will become harder after soldering,do not use wire cutter to change the dimensions of the tube,which may result in damaging the tube.
3.Our products useing lead-free soldering at two leads (RoHS compliance).Please operate the solder iron at 300-350°C.Do not apply soldering iron for more than 5 seconds.
4.Flash tube should operate at nominal anode voltage as specified.Please avoid to operate at minimum anode voltage or maximum anode voltage constantly.

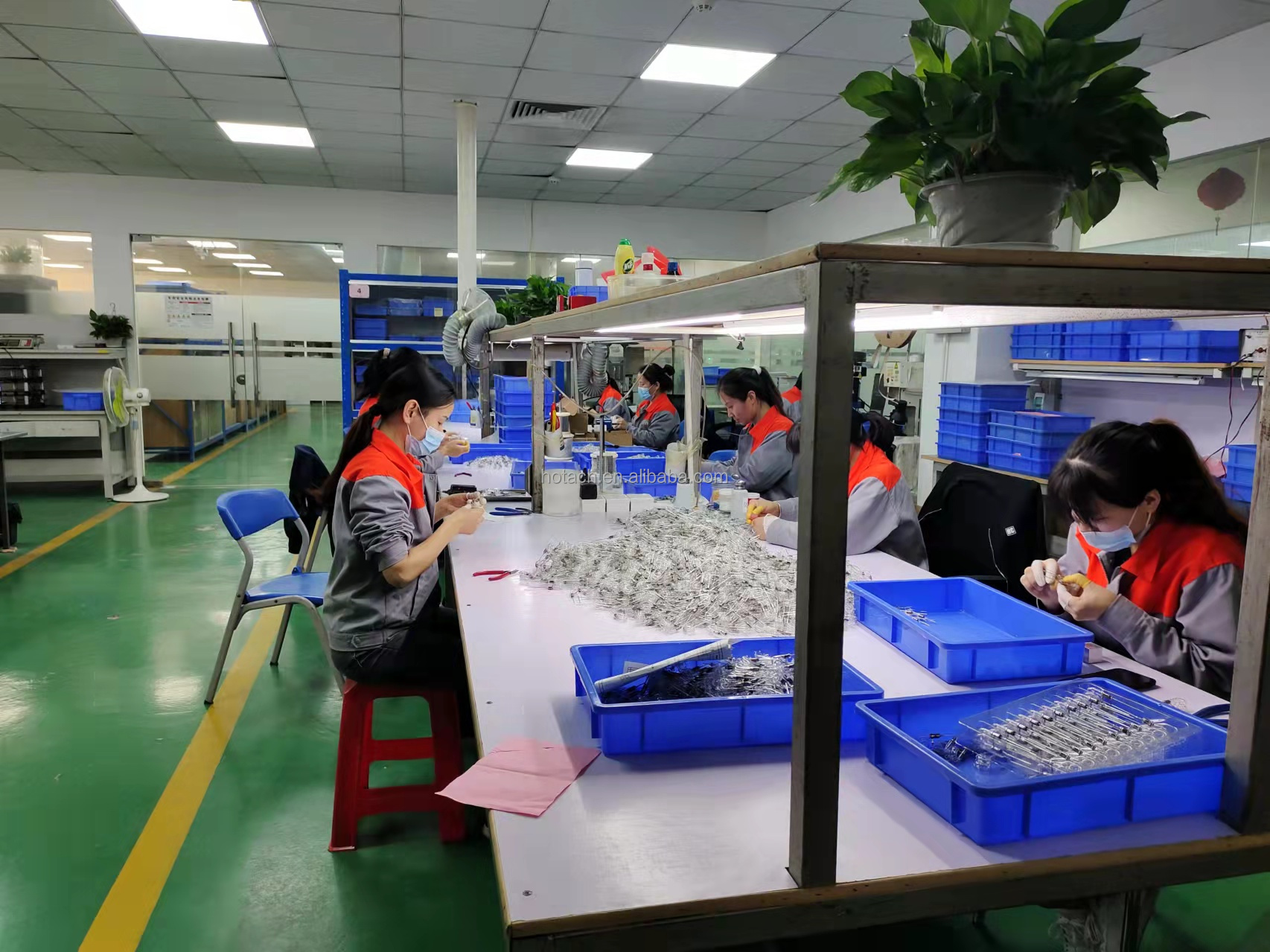

Company Introduction

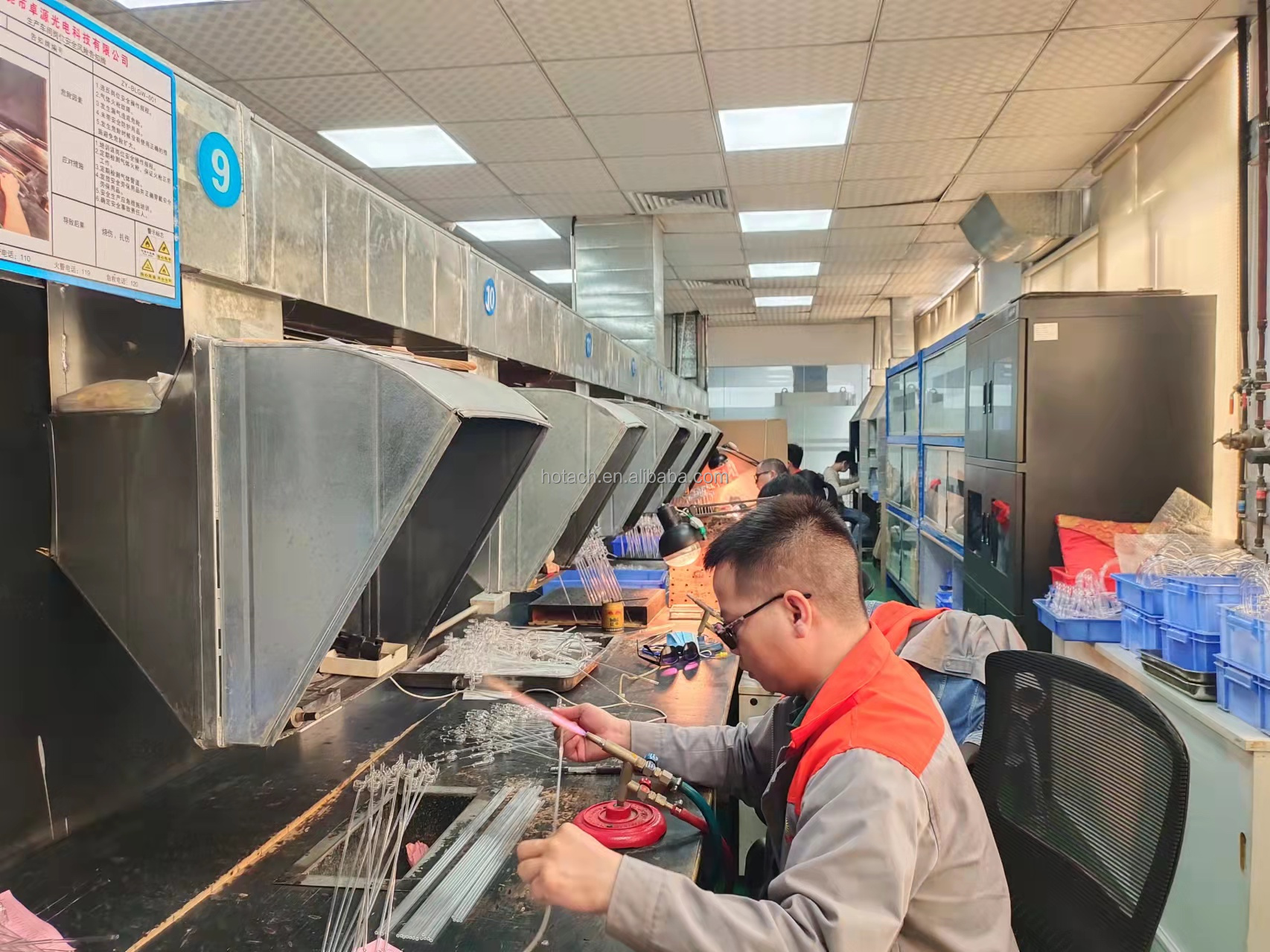

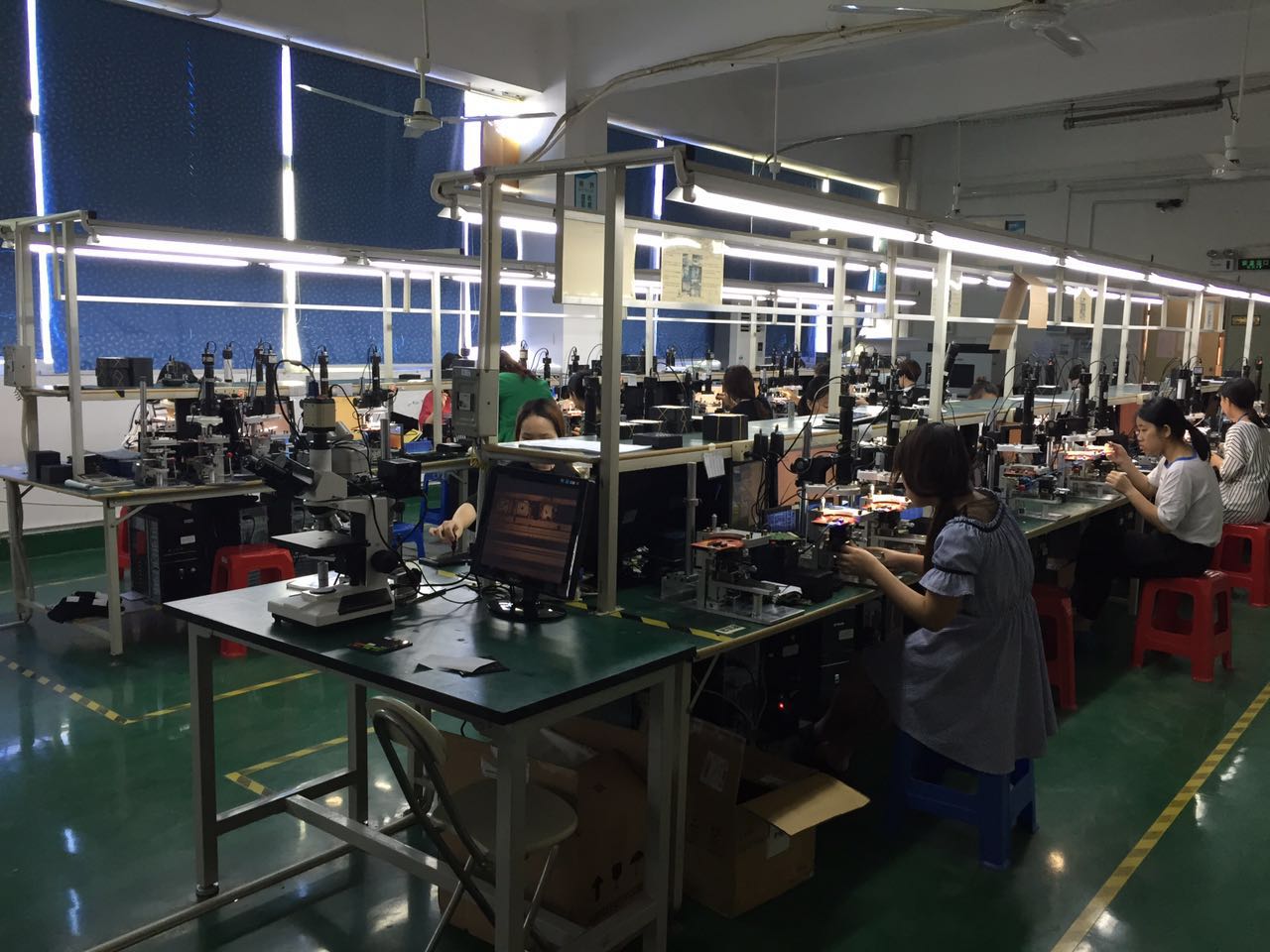

Shenzhen Hongtai Auspicious Technology Co.,Ltd. was established in 2012. From research and development to production. Hongtai is demanding the market offers high performance light source solutions. The second to none in the special light source market. It's a collection of light source research and development ,production, sales ,service as one of the high - tech enterprises.
We are professional factory which focus on xenon flash lamp in different fields:
1.Flash tubes for photographic applications
2.Flash tubes for industrial applications
3.IPL-Flash Tube for Beauty ApplicationsWe according customer requirement to do OEM.
We only provide high quality to keep good reputation. Hope our cooperation can reach win-win business.

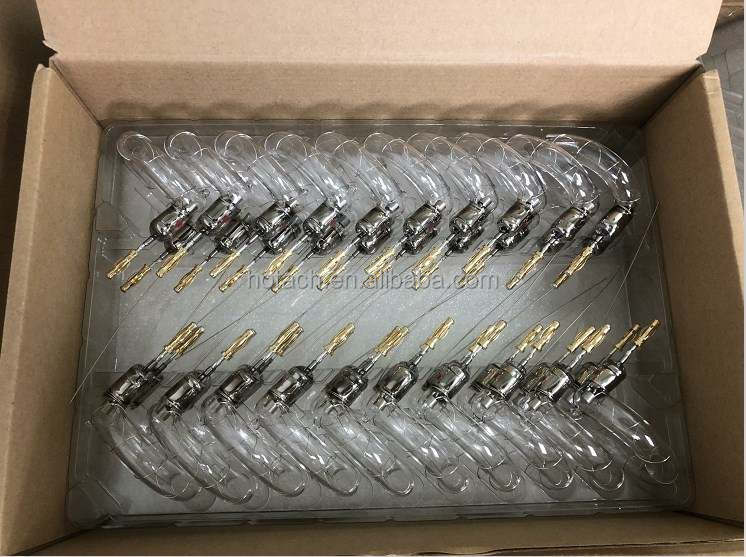

Packing&Shipping
FAQ
Sample:
1. If you make sample according to your artwork, it could cost you sample charge
2.If you need our samples for testing the quality, that is for free, but you have to pay Express Freight
Our Advantages:
1.Your reply will be replied within 24 hours
2.We offer you professional service
3.Keep the mass production as the sample in high quality
4.Freight forwarder: faster, safer, and convenient
5.Quality:we have QC on each process
6.Custom logo and packaging acceptable and according to customer's demand
7.Protection of your sales area, ideas of design and all your private information
8.All items 100% tested before shipment
9.One year warranty. If no man-made problem,any defective products within warranty will
get maintenance or replacement unconditionally (we will replace or repair for your freely)
OEM orders are warmly welcomed
Have any other question pls don't hesitate to keep in touch with me! I will always try our best for you at anytime!
To International Buyers:
Please Note:As a buyer,it is your duty to pay the tax when you make an order from abroad.Our price does not include taxes,vat,or
other hidden charges.
1. If you make sample according to your artwork, it could cost you sample charge
2.If you need our samples for testing the quality, that is for free, but you have to pay Express Freight
Our Advantages:
1.Your reply will be replied within 24 hours
2.We offer you professional service
3.Keep the mass production as the sample in high quality
4.Freight forwarder: faster, safer, and convenient
5.Quality:we have QC on each process
6.Custom logo and packaging acceptable and according to customer's demand
7.Protection of your sales area, ideas of design and all your private information
8.All items 100% tested before shipment
9.One year warranty. If no man-made problem,any defective products within warranty will
get maintenance or replacement unconditionally (we will replace or repair for your freely)
OEM orders are warmly welcomed
Have any other question pls don't hesitate to keep in touch with me! I will always try our best for you at anytime!
To International Buyers:
Please Note:As a buyer,it is your duty to pay the tax when you make an order from abroad.Our price does not include taxes,vat,or
other hidden charges.
