Warning emergency xenon flashtube lamp for traffic
- Input Voltage(V):AC 220V( ± 10%)
- Lamp Luminous Efficiency(lm/w):100
- Warranty(Year):1-Year
- Color Rendering Index(Ra):90
- Support Dimmer:Yes
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):15000
- Working Time (hours):50000
- Place of Origin:Guangdong, China(mainland)
- Brand Name:HTX001
- Specification:H1
- Color:White, Clear
- Color Temperature(CCT):PURE WHITE
- Name:Warning emergency xenon flashtube lamp for traffic
- Application:Photography
- Material:Quartz Glass
- Bulb Type:Xenon
- Luminous Efficacy(lm/w):1200

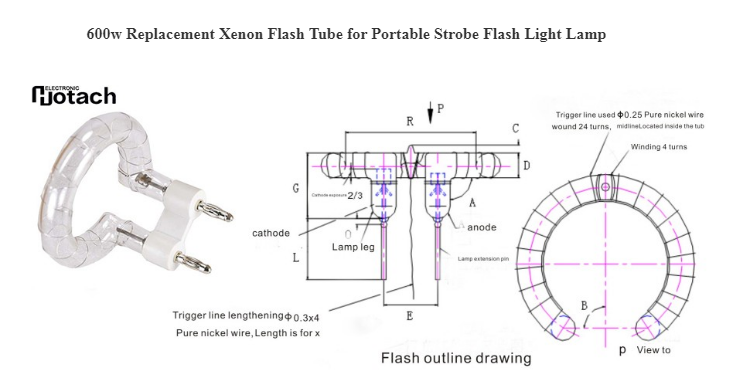

Flashtube Construction .
It is essentially that the construction of the flashtube is quite simple. A glass or quartz tube is configured to the appropriate shape, filled with Xenon gas, and an electrode is sealed in at each end. Then, a means of triggering the tube . . such as a wire wrapped around the outer diameter . . is devised. Of course, the performance of such a tube is dependent upon things such as: . Type of glass or quartz envelope . Arc length or tube diameter . Electrode design . The Xenon gas pressure and composition . The method of triggering the flash.
Detailed Images
Traffic.
Warning beacons for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads
Industry.
Stroboscopic applications such as automotive timing lights,
dynamic balancing machines, high speed photo copiers and typesetting..
Applications.
·Strobes for window displays, psychedelic lighting.
·Stroboscopic applications, laser pumping, colorimetry.
·Endoscopic applications.
·Both amateur and professional equipment.
