Model No: Spiral Type
OEM Factory Xenon Flash Tubes For Traffic Warning Light With Lead Free Solder
High-quality xenon flash tubes specifically designed for traffic warning lights, with lead-free solder for environmentally conscious manufacturers.
minimum order :
1 piece
Country of Origin :
YANTIAN. SHENZHEN
Quantity :
- Input Voltage(V):DC 48V
- Lamp Luminous Efficiency(lm/w):55
- Warranty of xenon strobe tube(Year):1-Year
- Color Rendering Index(Ra):60
- Support Dimmer:NO
- Lighting solutions service:Lighting and circuitry design
- Lifespan (hours):12000
- Working Time (hours):40000
- Product Weight（kg）:0.05
- Place of Origin:Guangdong
- Brand Name:OEM
- Specification:QFM Series
- Color:White
- Color Temperature(CCT):Other
- Product name:100ws flash tube xenon strobe tube
- Max flash energy:80Watts
- Nom flash energy,Enom:60Watts
- Max anode voltage,Ua max (V):500
- Nom anode voltage,Ua nom (V):400
- Min anode voltage,Ua min (V):300
- Gas Filling:99.999% Xenon Gas
- Operating type:Pulsed Xenon strobe tube
- Lamp Shape:Spiral Xenon strobe tube
- Keyword:Sprial Xenon strobe tube flashes
Product Description
OEM Factory xenon strobe tube For Traffic Warning Light With Lead Free Solder
High intensity pulsed light for hair removal and cosmetic skin treatment is now the preferred solution for beauticians and medical users worldwide . As one of the most important parts , IPL flash lamp plays key role on the safety and treatment results .
150w xenon strobe lights Xenon strobe tube we offer have the following features:
*Excellent flash to flash reliability
*High quality manufacturing standards
*Consistent spectral output
*High quality raw materials
*Several lamp connectors are available
*All lamps are tested after production
Long and consistent lifetime
*Excellent flash to flash reliability
*High quality manufacturing standards
*Consistent spectral output
*High quality raw materials
*Several lamp connectors are available
*All lamps are tested after production
Long and consistent lifetime
Xenon strobe tube emit a high intensity light ideal for a broad range of applications:
Photographic : Both amateur and professional equipment are using xenon strobe tube with different shape and power.

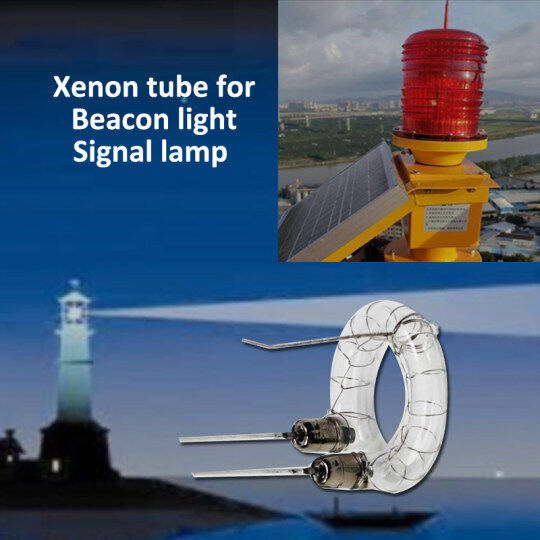

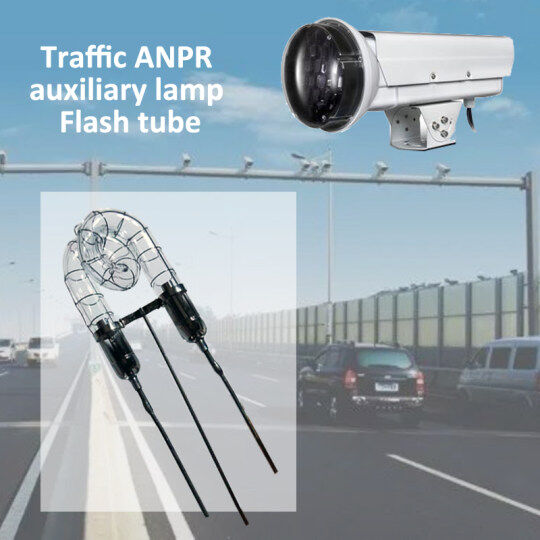

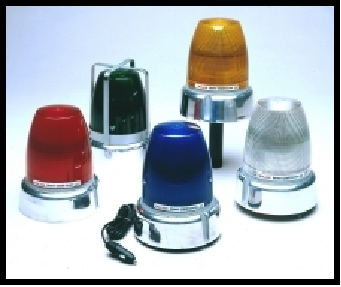

Traffic : Xenon strobe tube for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads.
Industry : Stroboscopic applications such as automotive timing lights, dynamic balancing machines, high speed photo copiers and typesetting are equipped with Xenon strobe tube
Publicity:Xenon strobe tube for window displays, psychedelic lighting.
Science: Stroboscopic applications, laser pumping, colorimetry .
Medicine: Endoscopic applications are used with high quality of Xenon strobe tube
Traffic : Xenon strobe tube for traffic control, aircraft, marine craft, emergency vehicles, airport runways and railroads.
Industry : Stroboscopic applications such as automotive timing lights, dynamic balancing machines, high speed photo copiers and typesetting are equipped with Xenon strobe tube
Publicity:Xenon strobe tube for window displays, psychedelic lighting.
Science: Stroboscopic applications, laser pumping, colorimetry .
Medicine: Endoscopic applications are used with high quality of Xenon strobe tube
Detailed Images
What is inside a Xenon strobe tube?
TheXenon strobe tube contains two electrodes enclosed in a glass bulb filled with xenon gas. High voltage is applied to the electrodes, which momentarily releases sparks to create light flash. The xenon arc has the advantage of being spectral closer to daylight than the incandescent source.
Remarks of 150w Xenon strobe tube flashes
1.Lead free solder; red dot at anode; without colour corrective coating.
2.our products using lead-free soldering at two leads (RoHS compliance). Please operate the solder iron at 300-450°C, Do not apply soldering iron for more than 10 seconds.
3. Flash tube should operate at nominal anode voltage as specified, Please avoid to operate at minimum anode voltage or maximum anode voltage constantly.
4. Operating environment temperature requirements:-40°C---85°C.
5. Operating humidity requirement: 0%---95%
2.our products using lead-free soldering at two leads (RoHS compliance). Please operate the solder iron at 300-450°C, Do not apply soldering iron for more than 10 seconds.
3. Flash tube should operate at nominal anode voltage as specified, Please avoid to operate at minimum anode voltage or maximum anode voltage constantly.
4. Operating environment temperature requirements:-40°C---85°C.
5. Operating humidity requirement: 0%---95%
Product Presentation

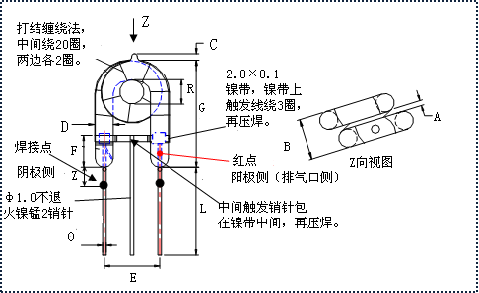

Specification of Xenon strobe tubefor Traffic Strobe Light
Type | Material | Size(mm) | Anode Votage | Flash Energy | Flash Frequency | Life Span |
QFM0842 | Quartz Tube | 8.0(D)*20(E)*42(G)*45(L) | 400~620 | 70W | 1HZ | 9 million shots |
QFM0740 | Quartz Tube | 7.0(D)*18.5(E)*40(G)*45(L) | 450~650 | 60W | 1HZ | 9 million shots |
QFM0845 | Quartz Tube | 8.0(D)*22(E)*45(G)*45(L) | 400~620 | 70W | 1HZ | 9 million shots |
QFM0742 | Quartz Tube | 7.0(D)*20(E)*42(G)*45(L) | 450~650 | 60W | 1HZ | 9 million shots |
Customize | Quartz Tube | 6~10(D)*18~22(E)*35~45(G)*customize(L) | customize | Customize | 1HZ | Customize |
Company Introduction
HongTai xenon strobe tube has high energy standards and high repetition frequency. We offer a wide range of standard and customized flash tubes designs, including straight, ring, screw, U and hetero.
We provide High performance solutions for our customers from research ,design, devolopment to production. We work closely with our customers in the research and development as well as continuous innovation of xenon strobe tube light and related parts, which enables us to build a solid strategic partnership.
We provide High performance solutions for our customers from research ,design, devolopment to production. We work closely with our customers in the research and development as well as continuous innovation of xenon strobe tube light and related parts, which enables us to build a solid strategic partnership.
Advantages of Our Factory
Hongtai Industrial Limited. is considered a reliable partner for two reasons:
* A plant area of 2,000 ㎡
* Factory Certificates: CE,SGS,IS09001and 45001,
*Over 10 years strong R&D TEAM and supply chain management

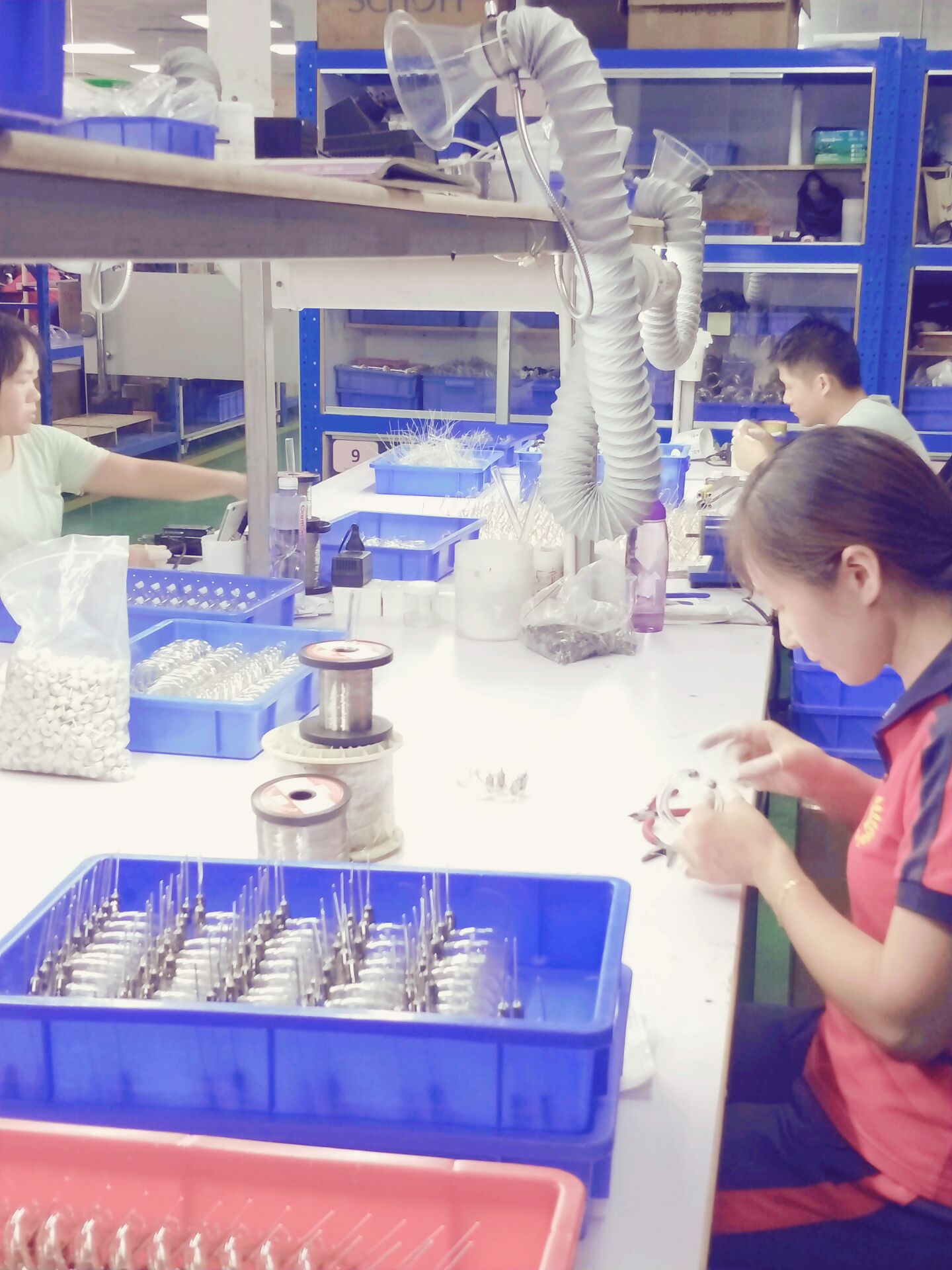

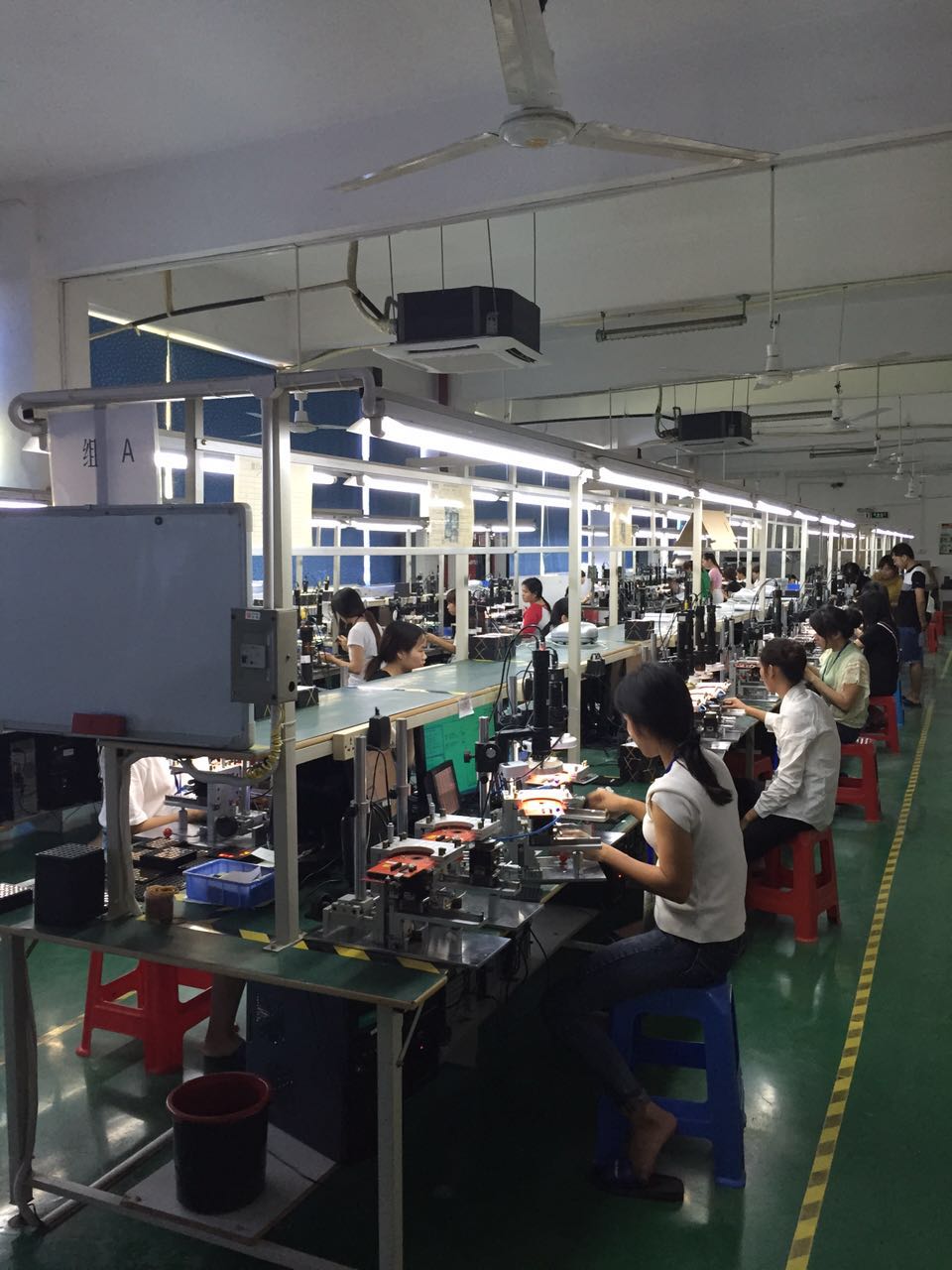

* Automated production line
* Stable Quality and Stable delivery
* Factory Certificates: CE,SGS,IS09001and 45001,
*Over 10 years strong R&D TEAM and supply chain management
* Automated production line
* Stable Quality and Stable delivery
Hongtai Industrial Limited. is considered a reliable partner for two reasons:
1.Ourxenon strobe tubes with related products can meet the highest standards for quality and environmental protection : flash tubes, trigger coils, reflectors, various lamp holder accessories, lamp control design solutions, power supplies, etc.
2.Our products are widely accepted by countries like: Germany, Italy, Japan, Korea , Mexico, Peru, Russia, Swiss, UK, U.S.A, Vietnam etc.

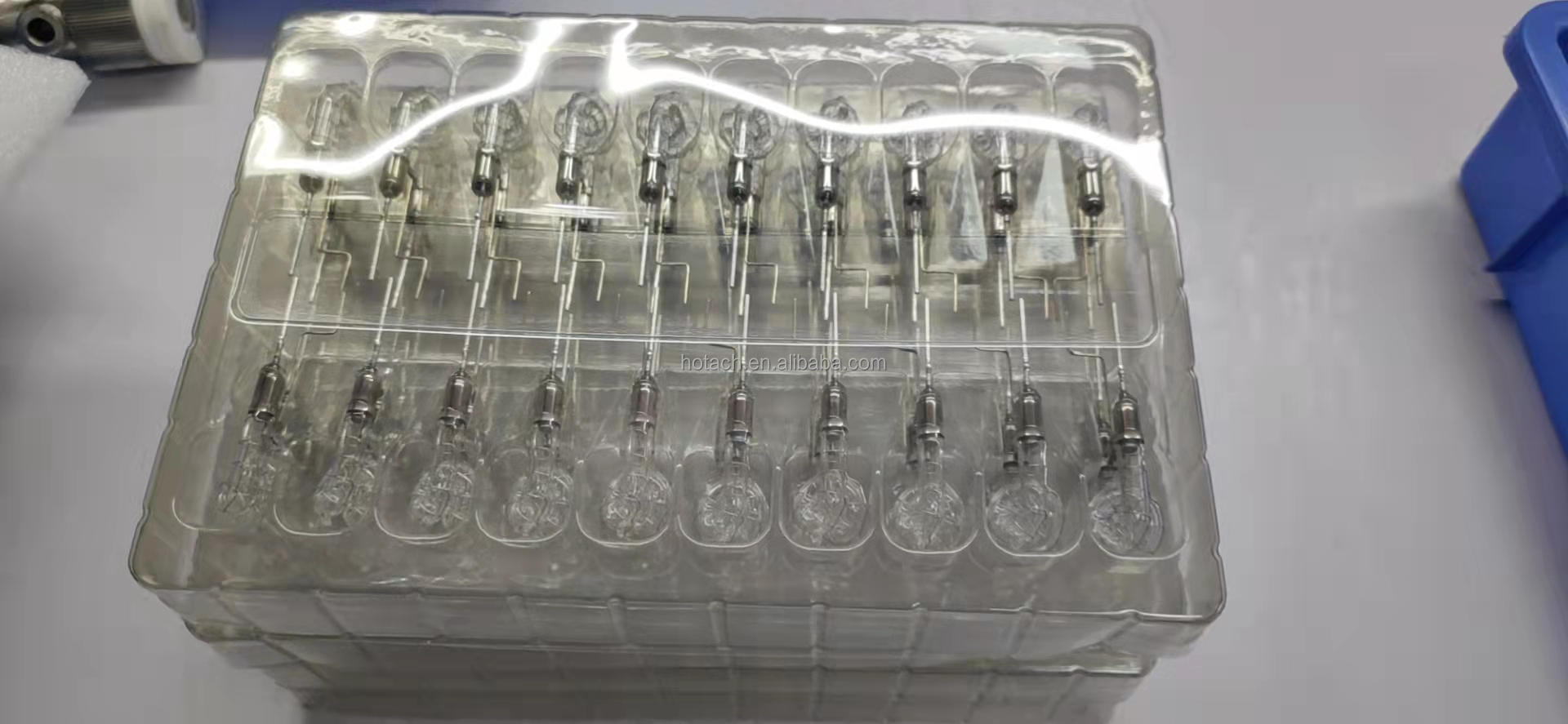

Packing&Shipping
FAQ
Dear Customers:
Thanks for your visiting our xenon flash tube. We are one of the leading Xenon Flash tube manufacturers in China
since 1999 in this industrial. We made OEM order for worldwide partners and satisfied them during past decades. Actually we manufacture flash tube according to customer's mechanical and electrical parameters. We can manufacture linear ,U-bend, circular,spiral and special shapes flash tube for your machine applications. In order to give you a high-efficiency services, pls. kindlytell me your request details including mechanical and electrical characteristics as the following diagrams.
since 1999 in this industrial. We made OEM order for worldwide partners and satisfied them during past decades. Actually we manufacture flash tube according to customer's mechanical and electrical parameters. We can manufacture linear ,U-bend, circular,spiral and special shapes flash tube for your machine applications. In order to give you a high-efficiency services, pls. kindlytell me your request details including mechanical and electrical characteristics as the following diagrams.
Lamp Order Tips
There are 4 key parameters for the flash lamps:
1. Total length
1. Total length
2. Arc length
3. Bore diameter
4. OD 5. Gas pressure
If you have any photos , that will be helpful too .
If you have any photos , that will be helpful too .
If you have any other questions, please contact with me. I will answer you within 12 hours.
